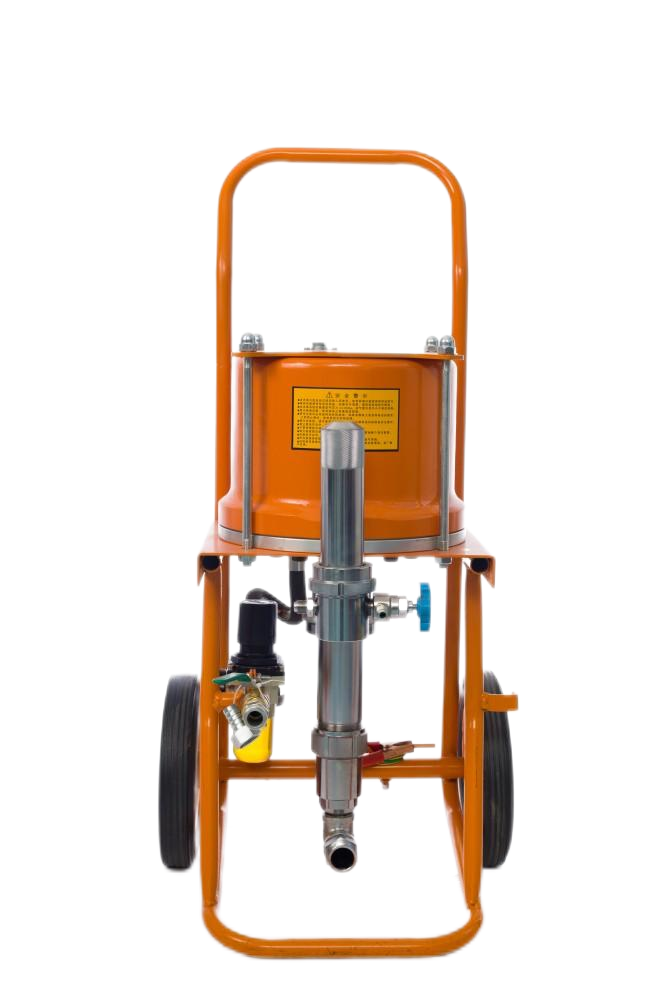

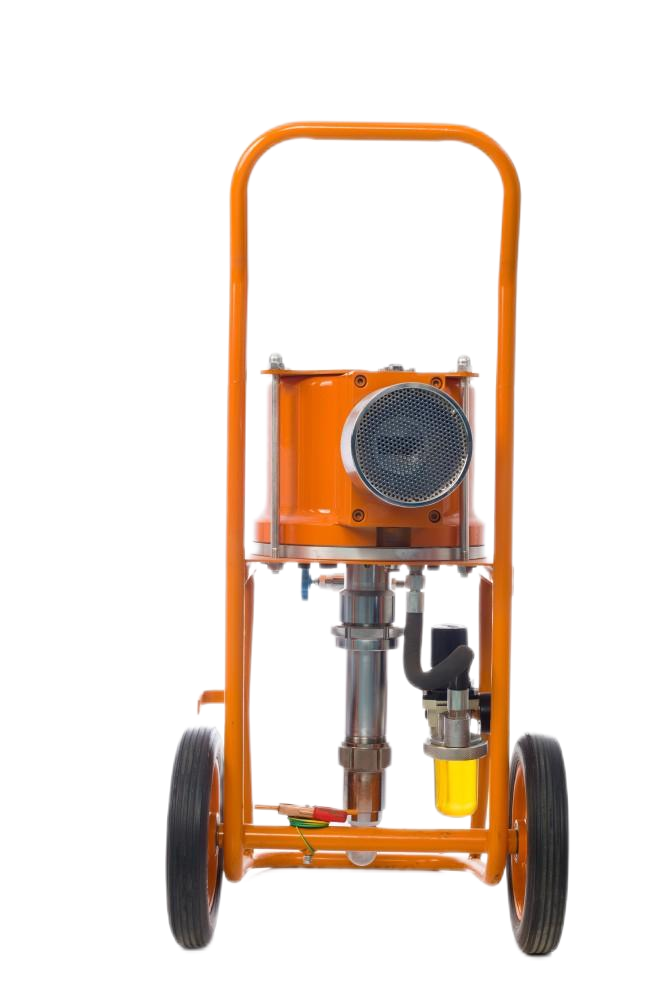

FDN-D6918F Pneumatic High-Pressure Airless Spray Machine

The FDN-D6918F Pneumatic High-Pressure Airless Spray Machine is engineered for high productivity and efficient application of various coatings. Its advanced pneumatic technology ensures a thick, uniform film with strong adhesion, making it ideal for high-viscosity primers, oil-based paints, enamels, latex, and fireproof coatings.

Key Features:

• Versatile Application: Suitable for a wide range of industries, including shipbuilding, railway vehicles, chemical equipment, bridges, large buildings, interior and exterior walls, painted tiles, aircraft, automobiles, furniture, and steel structures.

• High-Pressure Performance: With a pressure ratio of 65:1 and maximum flow rate of 25 liters per minute, it delivers consistent and efficient spraying.

• Customizable Options: Can be configured with automatic and remote systems upon request, tailored to specific project needs.

• Robust Construction: Features a durable pneumatic motor and can be constructed with stainless steel components for specialized applications, such as pharmaceutical industry coating processes.

Technical Specifications:

• Model: FDN-D6918F

• Type: High-pressure airless spraying machine

• Core Components: Pneumatic motor

• Net Weight/Gross Weight: 46 kg / 70 kg

• Warranty of Core Components: 6 months

• Application: Capable of spraying oil paint and various coatings

• Automatic System: Available upon customization

• Remote System: Available upon customization

• Cylinder Bore: 240 mm

• Inlet Pressure: 0.2–0.6 MPa

• Pressure Ratio: 65:1

• Air Compressor Configuration: Requires 1 cubic meter (to be provided by customer)

• Maximum Flow: 25 liters per minute

• Stroke: 120 mm

• Air Consumption: 300–1500 liters per minute
