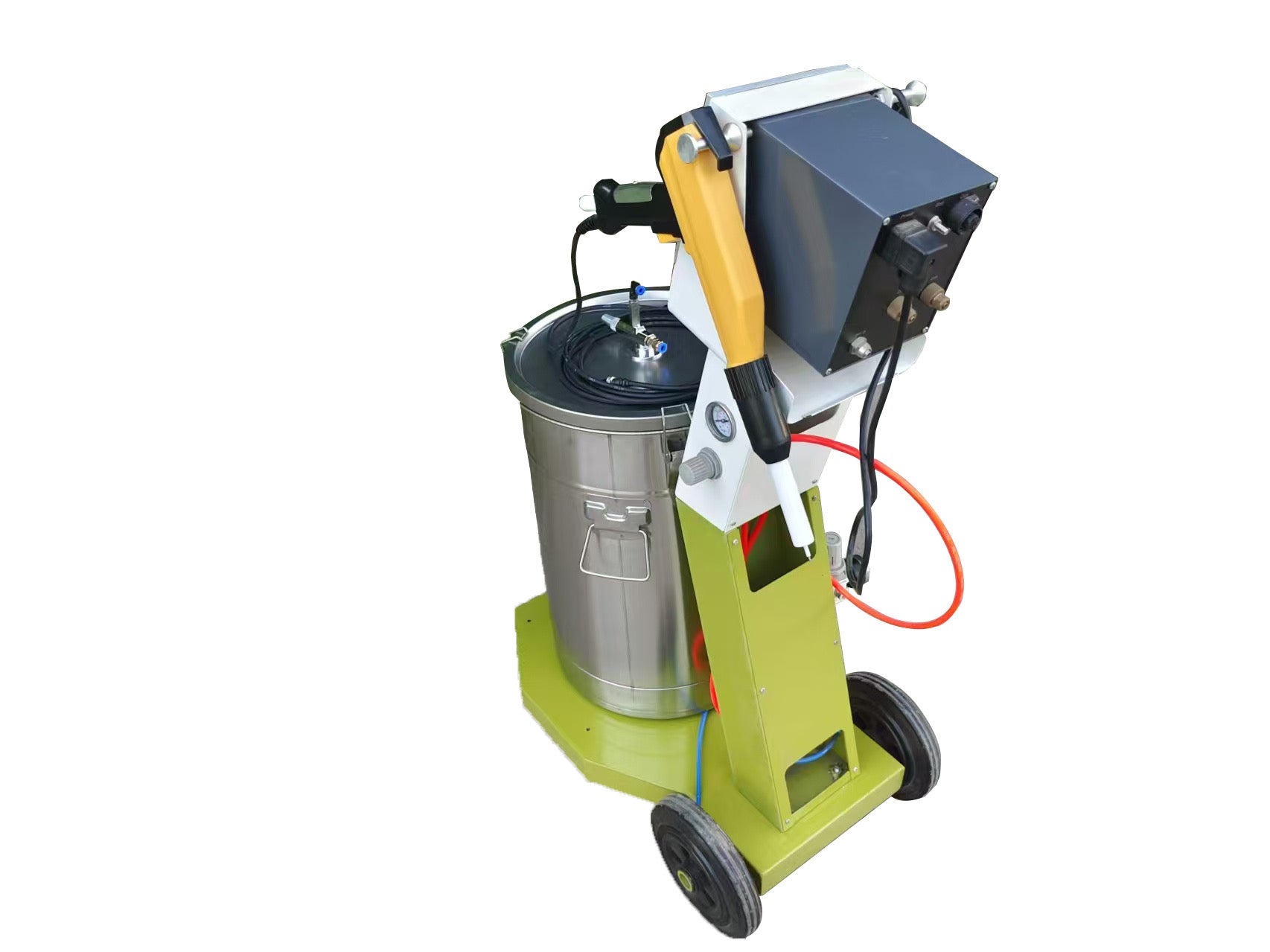

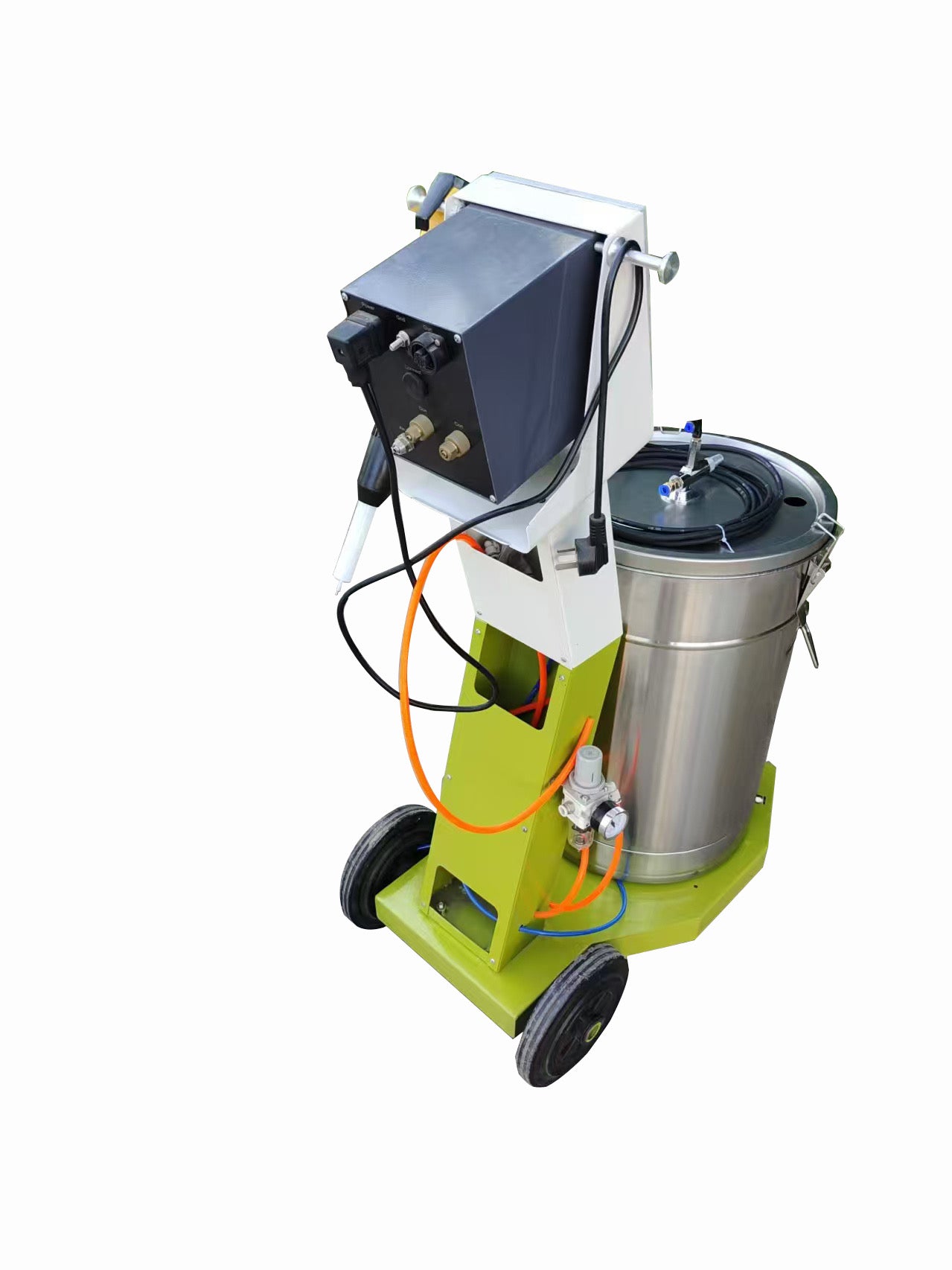

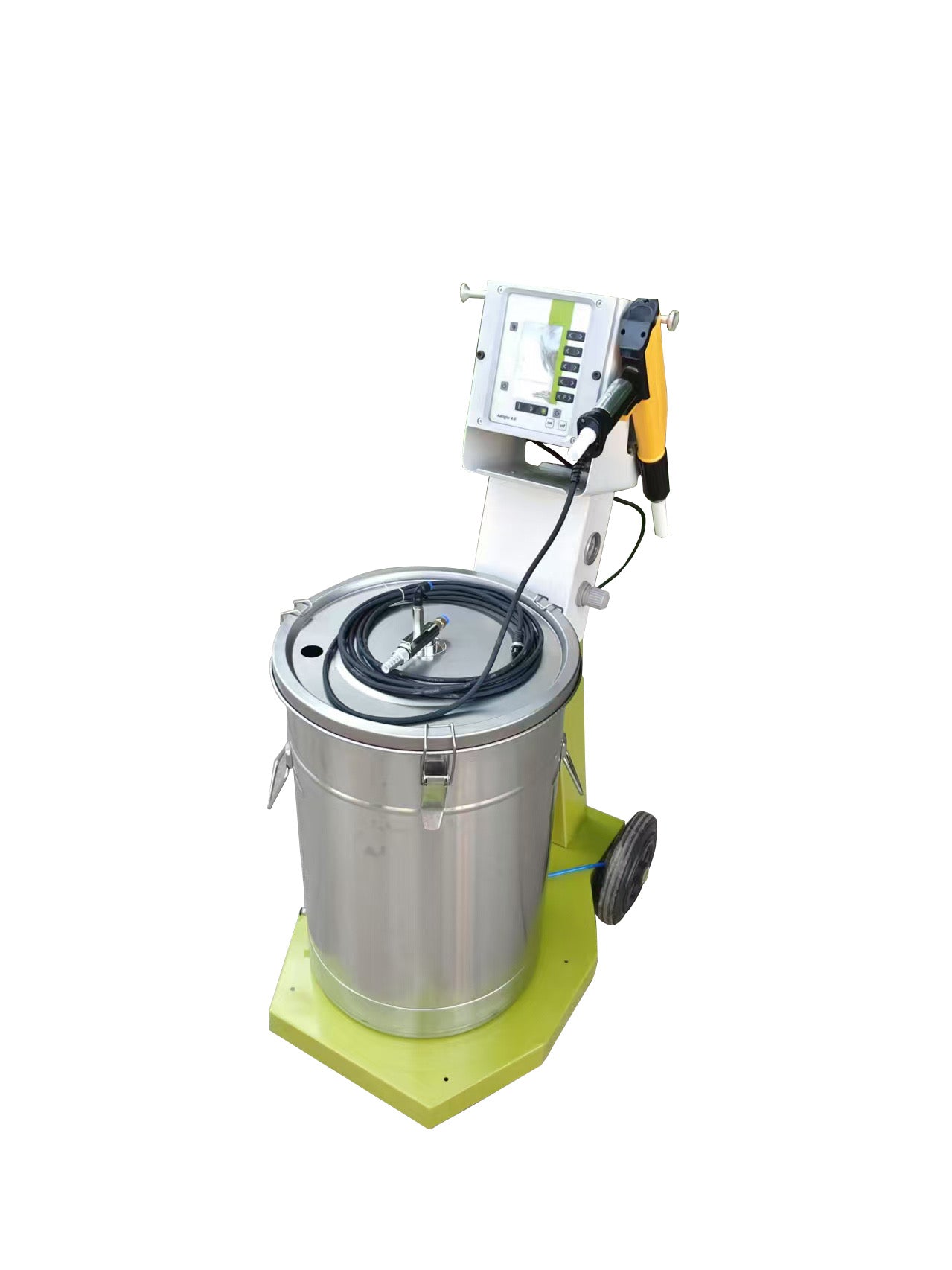

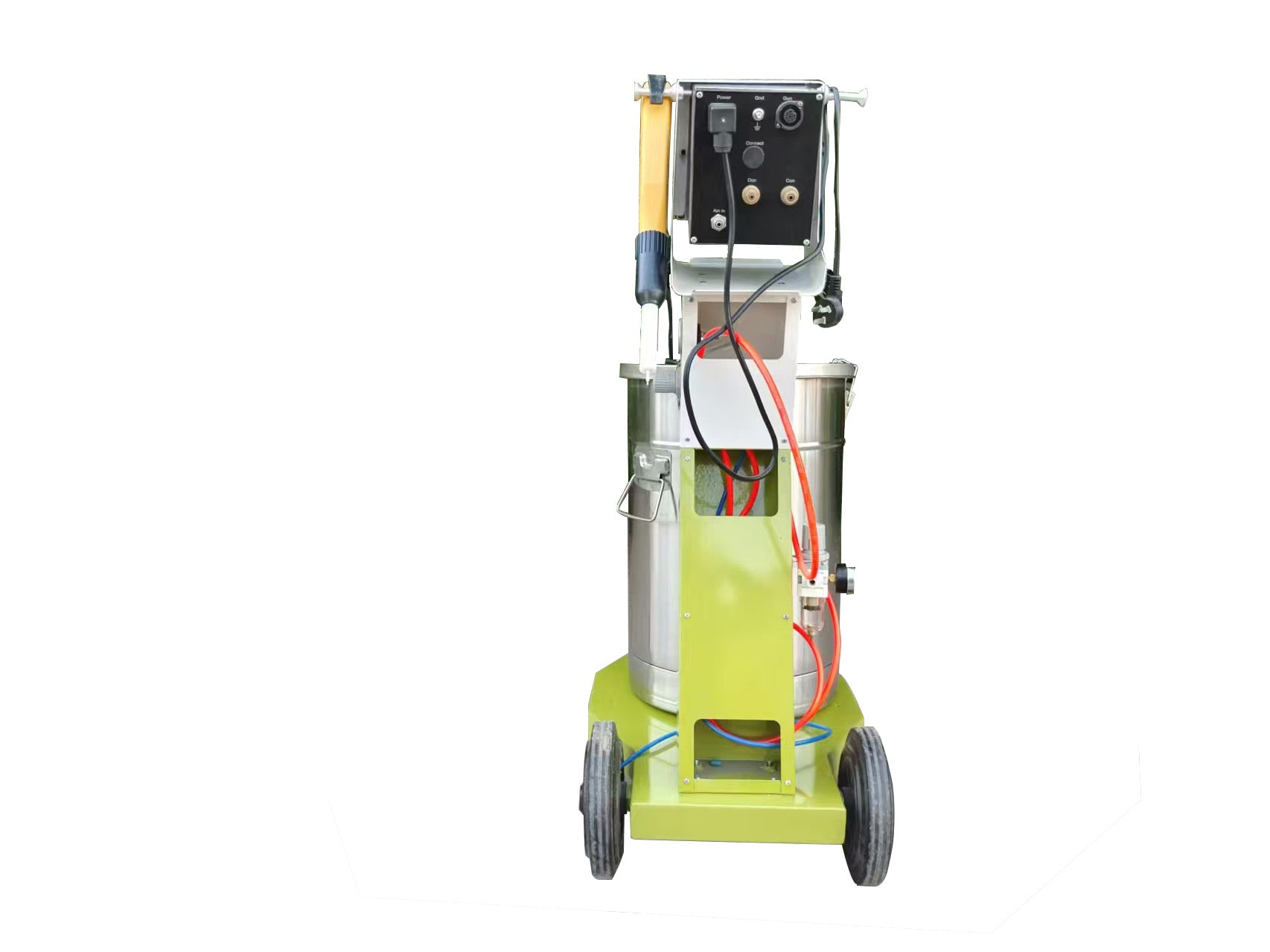

FDN-882F Electrostatic Powder Coating Machine

The FDN-882F Electrostatic Powder Coating Machine is engineered for precision, durability, and efficiency in powder coating applications. Using the principle of electrostatic attraction, it ensures even powder distribution on all workpiece surfaces, delivering a smooth and professional finish. This machine is ideal for assembly lines, metal fabrication, plastic coating, and other industrial settings.

Built to support both 110V and 220V power systems, it can be used across various regions with ease. Its high powder output, energy efficiency, and ergonomic spray gun make it an excellent choice for professionals looking for consistent, high-quality results.

Key Features:

• Electrostatic Spray Technology: Uniformly adheres powder to surfaces using static electricity.

• High Powder Output: Delivers up to 600g/min for efficient coating.

• Flexible Voltage Support: Operates on 110V–120V or 220V–230V AC depending on the region.

• Lightweight Spray Gun: Weighs only 480g for improved handling and reduced fatigue.

• Large Hopper Capacity: 50L powder hopper for extended work sessions.

• Application Versatility: Suitable for metalwork, plastic coating, industrial painting, and more.

• Use with Drying Booth: Recommended for optimal curing and finish.

Technical Specifications:

• Model: FDN-882F

• Voltage: 110V–120V AC / 220V–230V AC

• Frequency: 50Hz–60Hz

• Input Power: 30W

• Electromagnetic Valve Control Power: 24V DC

• Input Air Pressure: 0–0.8 MPa

• Output Air Pressure: 0–0.5 MPa

• Max. Air Consumption: 13.2 m³/h

• Max. Powder Output Volume: 600g/min

• Output Voltage: 12 KV (Negative Polarity)

• Output Current: 10–100 µA

• Gun Weight: 480g

• Gun Cable Length: 4.6m

• Powder Hopper Volume: 50L

• Net Weight / Gross Weight: 25.6kg / 27.7kg

• Package Size: 52 x 80 x 63 cm

• Core Component: Powder Coating Gun

• Warranty on Core Component: 6 months

Range of Application:

• Powder coating assembly lines

• Metal fabrication

• Plastic powder spraying

• General industrial spraying operations
