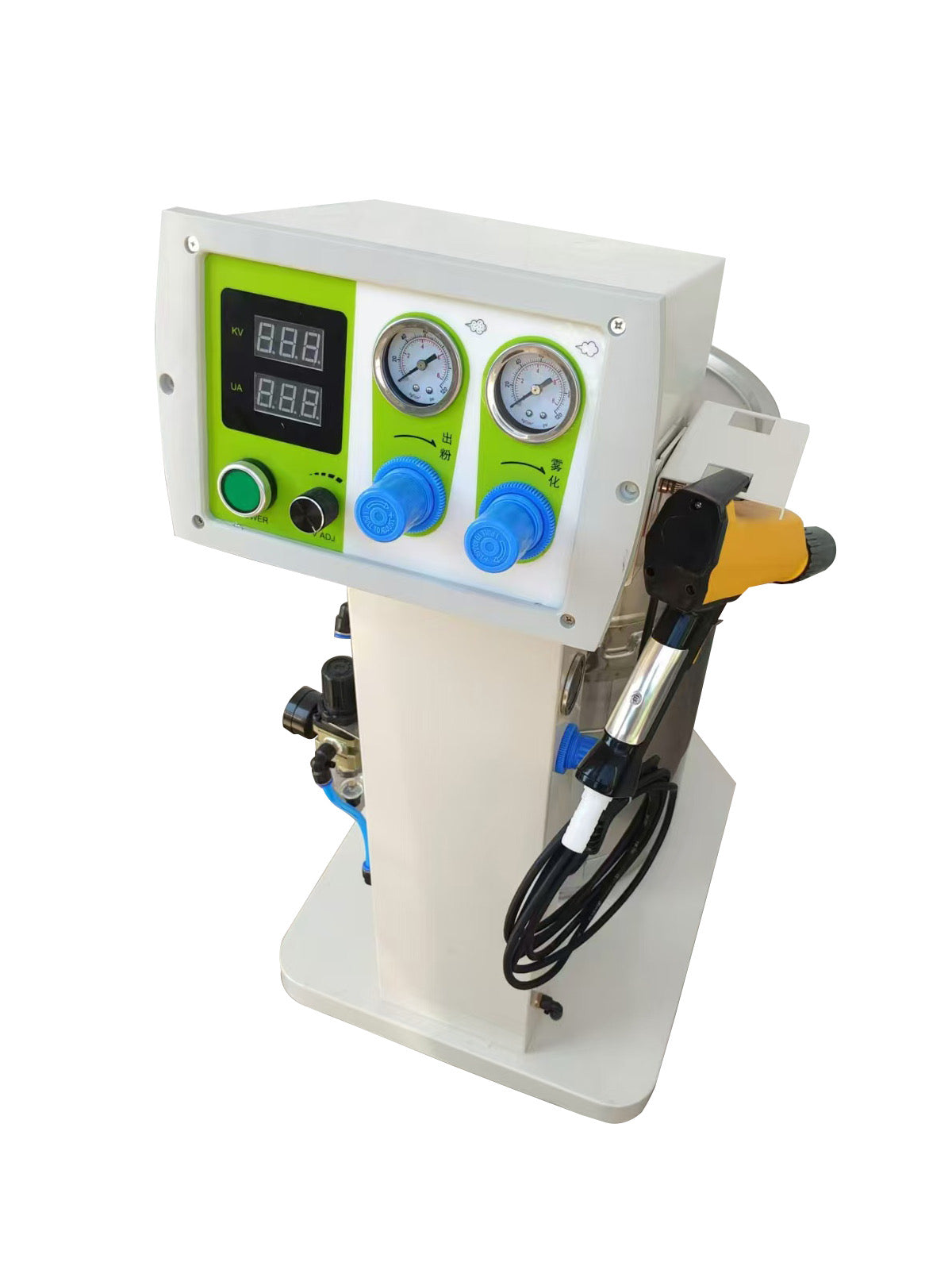

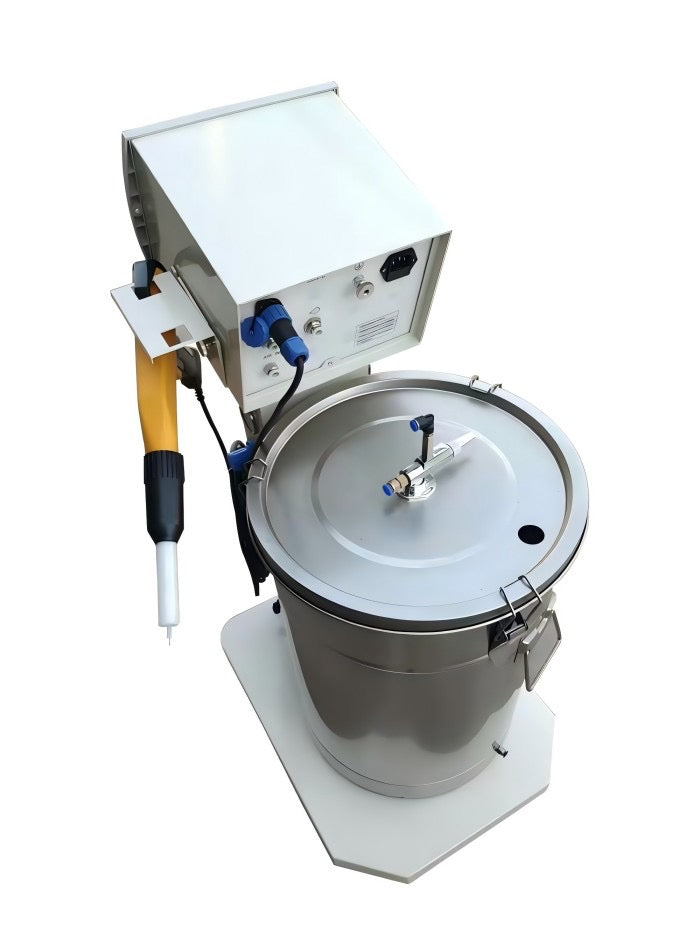

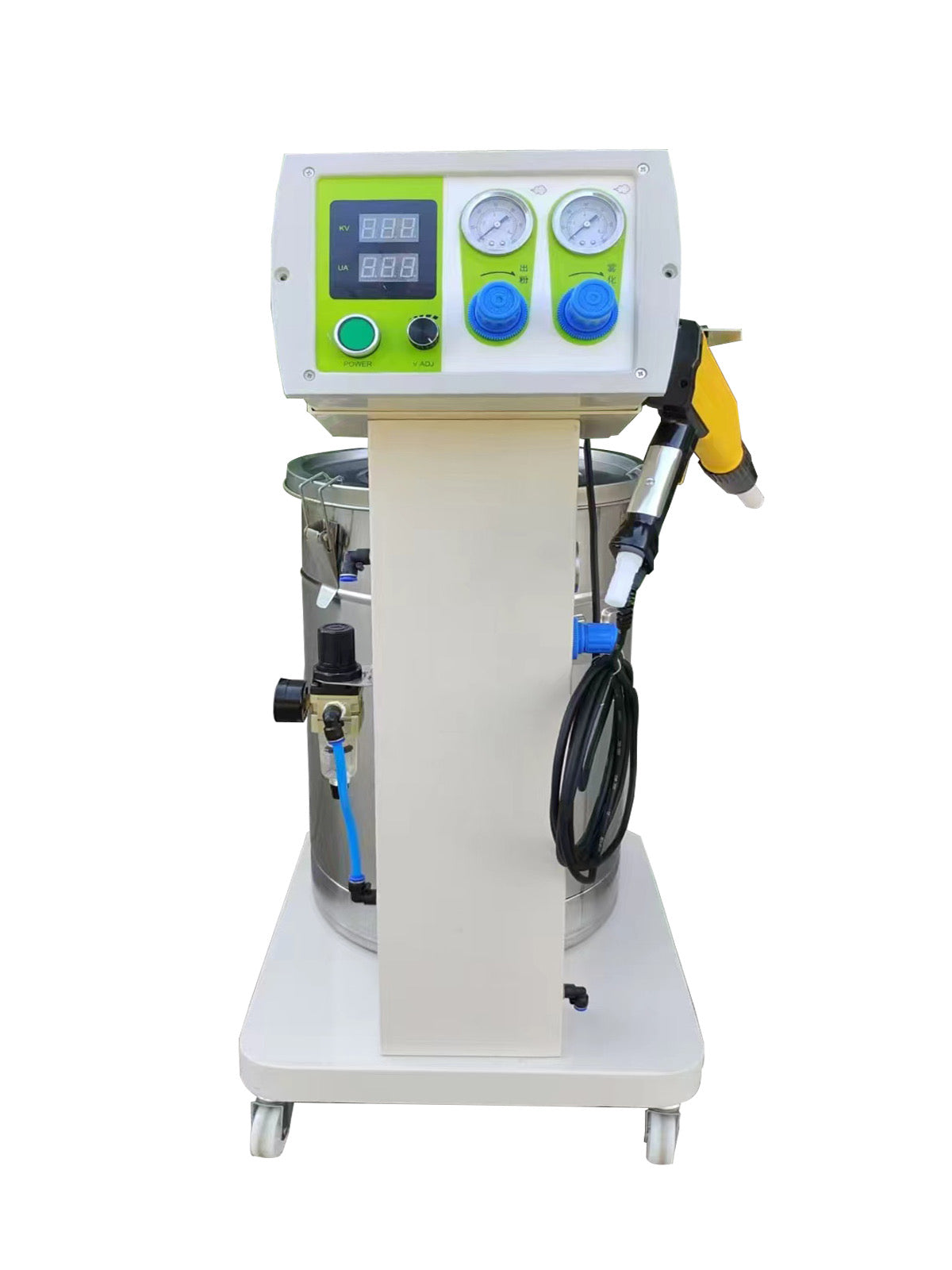

FDN-882D Electrostatic Powder Coating Machine

The FDN-882D Electrostatic Powder Coating Machine delivers high-efficiency coating results using advanced electrostatic technology. Ideal for use in industrial environments, this machine is designed to evenly spray powder paint onto metal and other surfaces, forming a durable and uniform powdered coating layer under the influence of static electricity.

Whether you’re coating products on an assembly line or working with metal, plastic, or other components, this machine is suitable for a variety of applications such as automotive, furniture, hardware, and more. It must be used in conjunction with a drying booth to achieve optimal performance.

Key Features:

• Electrostatic Spraying: Ensures an even and efficient coating on all surfaces using static charge adhesion.

• High Output: Delivers up to 600g/min powder output for consistent results and faster workflow.

• Compact and Lightweight: Easy to operate and maneuver with a lightweight spray gun and mobile powder hopper.

• Versatile Applications: Suitable for metal spraying, plastic powder coating, and general powder coating lines.

• International Compatibility: Supports voltage standards of 110–120V AC or 220–230V AC depending on country.

Technical Specifications:

• Model: FDN-882D

• Voltage: 110V–120V AC / 220V–230V AC (country-specific)

• Frequency: 50Hz–60Hz

• Input Power: 30W

• Electromagnetic Valve Control Power: 24V DC

• Input Air Pressure: 0–0.8 MPa

• Output Air Pressure: 0–0.5 MPa

• Max Air Consumption: 13.2 m³/h

• Max Powder Output Volume: 600g/min

• Output Voltage: 21 KV (Negative Polarity)

• Output Current: 10–100 µA

• Gun Weight: 480g

• Gun Cable Length: 4.6m

• Powder Hopper Volume: 50L

• Net Weight / Gross Weight: 25kg / 26.58kg

• Package Size: 66 x 51 x 51 cm

• Core Component: Powder Coating Gun

• Warranty on Core Component: 6 months
