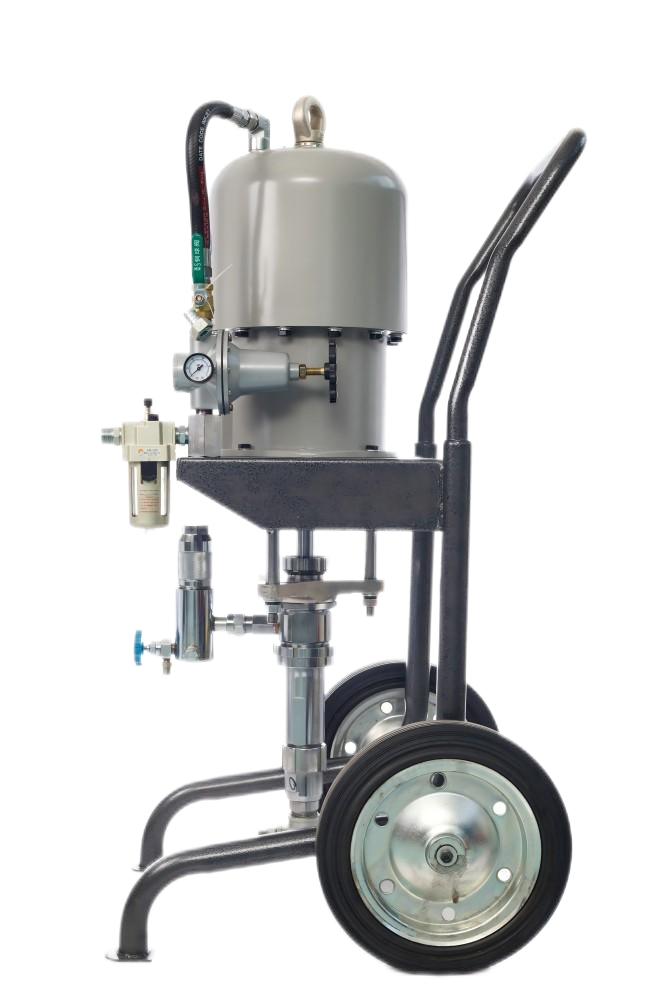

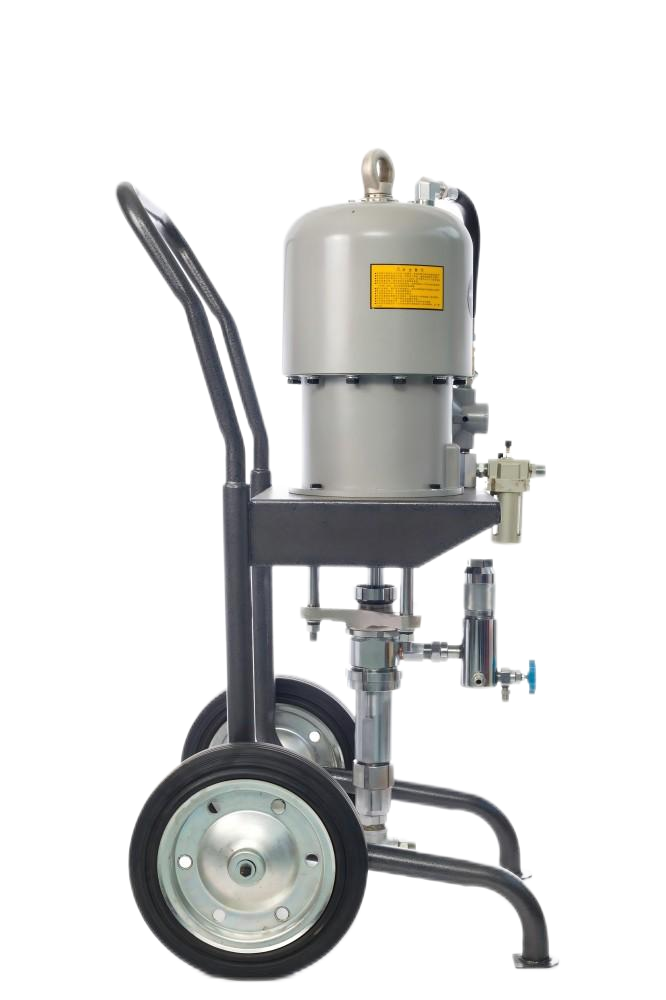

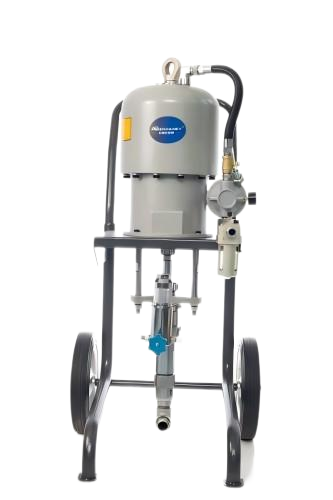

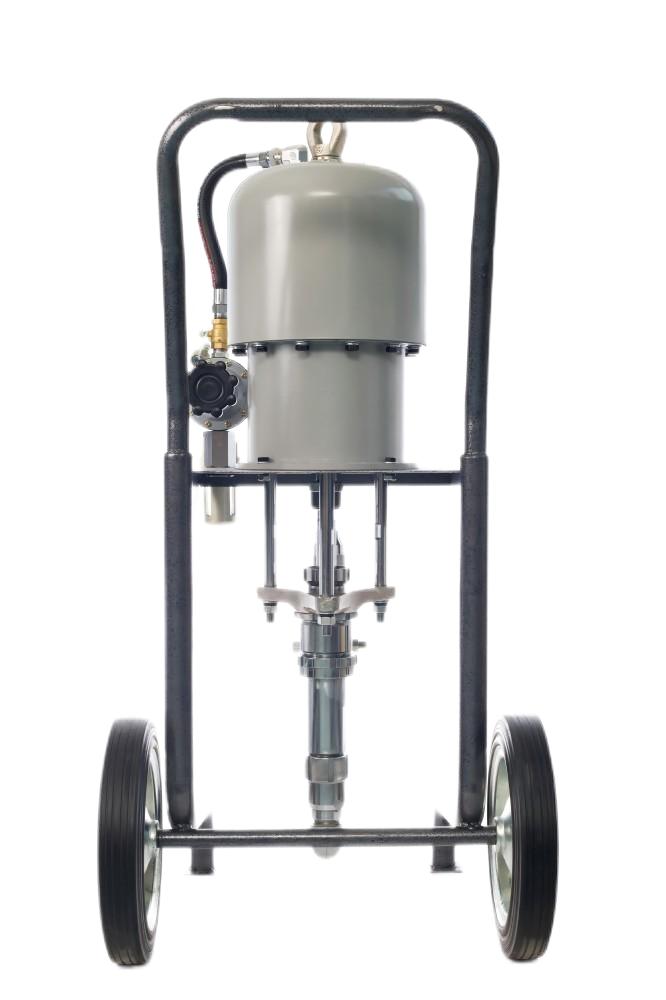

FDN-6918H-3 Pneumatic High-Pressure Airless Spray Machine

The FDN-6918H-3 Pneumatic High-Pressure Airless Spray Machine is engineered for efficient application of a wide range of coatings, including primers, oil paints, enamel paints, interior and exterior latex paints, and other water-based coatings. Its robust design and high-pressure capabilities make it suitable for various industries such as construction, furniture manufacturing, automotive, and chemical equipment.

Key Features:

• Versatile Application: Ideal for color tile paint, building interior and exterior wall latex paint, furniture, steel structures, chemical equipment, leather long spray glue, automobiles, trailers, polyurethane, epoxy zinc-rich, and fireproof waterproof paints.

• High-Pressure Performance: With a pressure ratio of 68:1 and a maximum flow rate of 32 liters per minute, it ensures consistent and efficient spraying.

• Customizable Systems: Options for automatic and remote systems are available upon request to meet specific project requirements.

• Durable Construction: Equipped with a pneumatic motor and can be configured with stainless steel components for enhanced durability and specialized applications.

Technical Specifications:

• Model: FDN-6918H-3

• Type: High-pressure airless spraying machine

• Core Components: Pneumatic motor

• Net Weight/Gross Weight: 85 kg / 115 kg

• Warranty of Core Components: 6 months

• Application: Capable of spraying oil paint and various coatings

• Automatic System: Available upon customization

• Remote System: Available upon customization

• Cylinder Bore: 255 mm

• Inlet Pressure: 0.3–0.6 MPa

• Pressure Ratio: 68:1

• Air Compressor Configuration: Requires 1 cubic meter (to be provided by customer)

• Maximum Flow: 32 liters per minute

• Air Consumption: 300–1500 liters per minute

• Package Material: Plywood box

• Package Size: 76 x 74 x 135 cm
