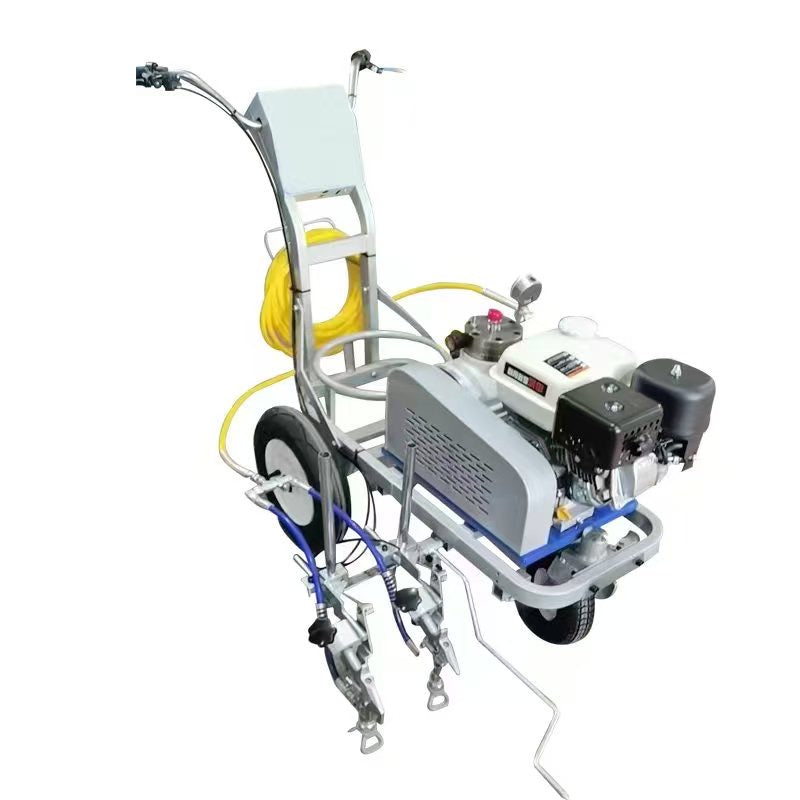

FDN-4800DS Double Guns Gasoline Road Marking Machine

The FDN-4800DS is a high-performance double-gun road marking machine designed for precision and efficiency in a variety of marking environments. Powered by a 5.5HP gasoline engine, this unit is ideal for marking roads in rural and urban areas, airports, highways, parking lots, and underground garages.

With dual spray guns, a robust 30 MPa working pressure, and a maximum flow of 2.0L/min per gun, the FDN-4800DS ensures faster coverage and professional-grade results. It’s built for long-term durability and reliable operation under demanding conditions.

Key Features:

• Dual Gun Efficiency: Two spray guns increase productivity, allowing for faster and wider marking applications.

• Wide Application: Perfect for use in various infrastructure projects including roads, parking lots, and airports.

• Strong Output: High working pressure of 30 MPa ensures even, consistent paint application.

• Gasoline Engine: Equipped with a 5.5HP motor for reliable field performance.

• Adjustable Width: Supports pattern widths from 250–350mm and distances between 350–550mm.

• Durable Build: Comes with a strong plywood packaging for safe handling and transport.

Technical Specifications:

• Model: FDN-4800DS

• Type: Double guns road marking machine

• Engine Type: Gasoline supply motor

• Motor Power: 5.5HP

• Working Pressure: 30 MPa

• Maximum Flow Rate: 2.0 L/min * 2

• Spray Gun Configuration: Two guns

• High-Pressure Tube:

• Theoretical Length: 60 meters

• Standard Configuration: 1/4”, 10 meters

• Pattern Width: 250–350mm

• Pattern Distance: 350–550mm

• Max Size of Tips: 0.025 inch * 2

• Net Weight / Gross Weight: 75kg / 85kg

• Package Material: Plywood box

• Package Size: 110 x 76 x 95 cm

• Warranty of Motor: 6 months
