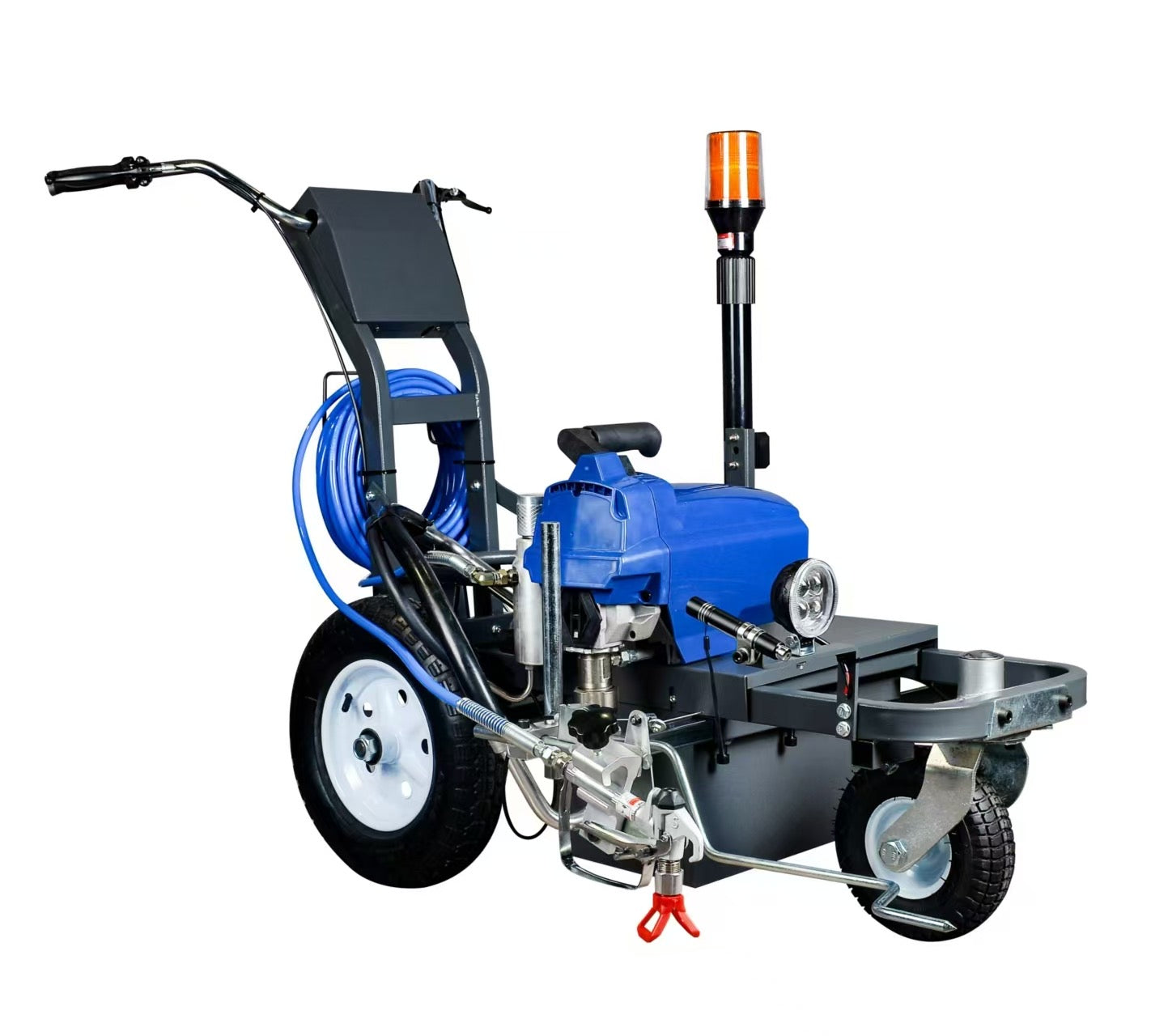

FDN-4800D Gasoline Engine Plunger Road Marking Machine

The FDN-4800D is a powerful gasoline engine plunger road marking machine designed for high-performance line marking in a variety of settings. Whether you’re marking roads in rural or urban areas, airports, highways, or parking structures, this machine offers the precision and durability needed for professional applications.

Equipped with a 5.5HP gasoline engine and a piston pump, it delivers strong output pressure and stable performance. It is suitable for spraying water-based paint, cold paint, and other paint types, ensuring versatility across multiple industries.

Key Features:

• Wide Application: Suitable for roadways, airports, highways, parking lots, and underground garages.

• Durable Engine: Powered by a reliable 5.5HP gasoline motor for consistent performance.

• Piston Pump System: Ensures stable flow and efficient operation.

• High Pressure Performance: Offers up to 25 MPa working pressure.

• Adjustable Marking: Delivers pattern widths between 250–300mm and spacing of 350–400mm.

• Heavy-Duty Construction: Built to withstand continuous professional use with a sturdy plywood packaging for safe transport.

Technical Specifications:

• Model: FDN-4800D

• Pump Type: Piston pump

• Engine Type: Gasoline supply motor

• Motor Power: 5.5HP

• Working Pressure: 25 MPa

• Maximum Flow Rate: 2.5 L/min

• High-Pressure Tube:

• Theoretical Length: 60 meters

• Standard Configuration: 1/4”, 10 meters

• Application: Water-based paint, cold paint, and various industrial paints

• Net Weight / Gross Weight: 100kg / 110kg

• Pattern Width: 250–300mm

• Pattern Distance: 350–400mm

• Package Material: Plywood box

• Package Size: 150 x 110 x 90 cm

• Core Components: Gasoline motor

• Motor Warranty: 6 months
