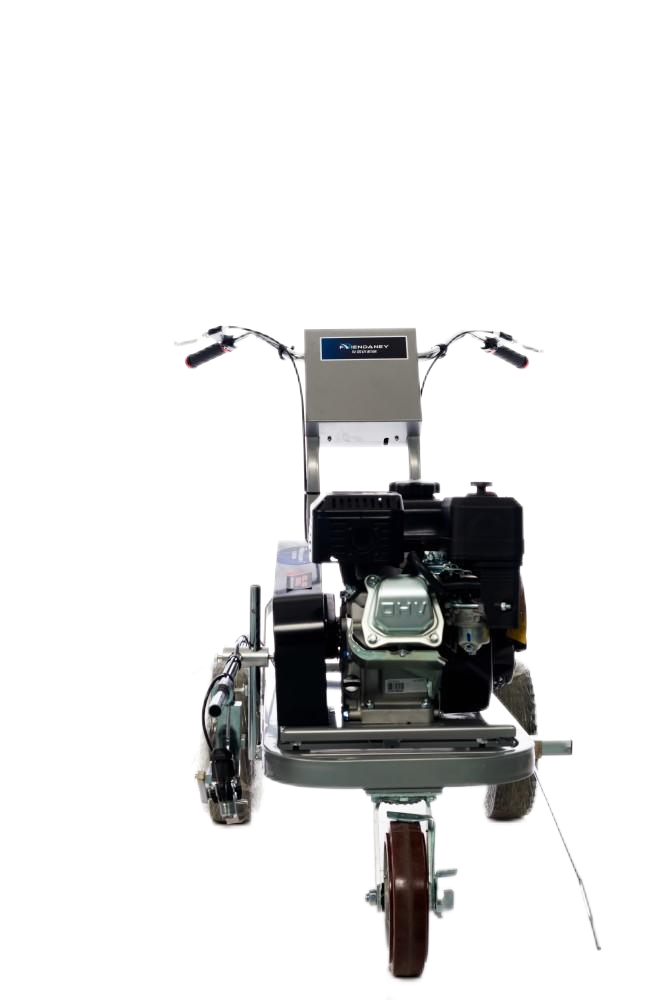

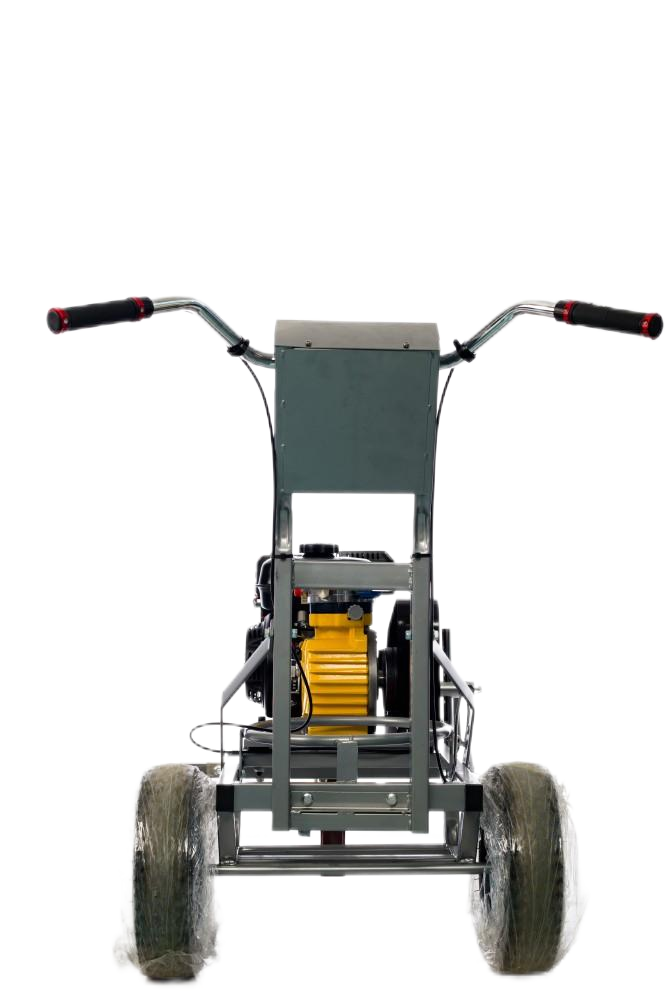

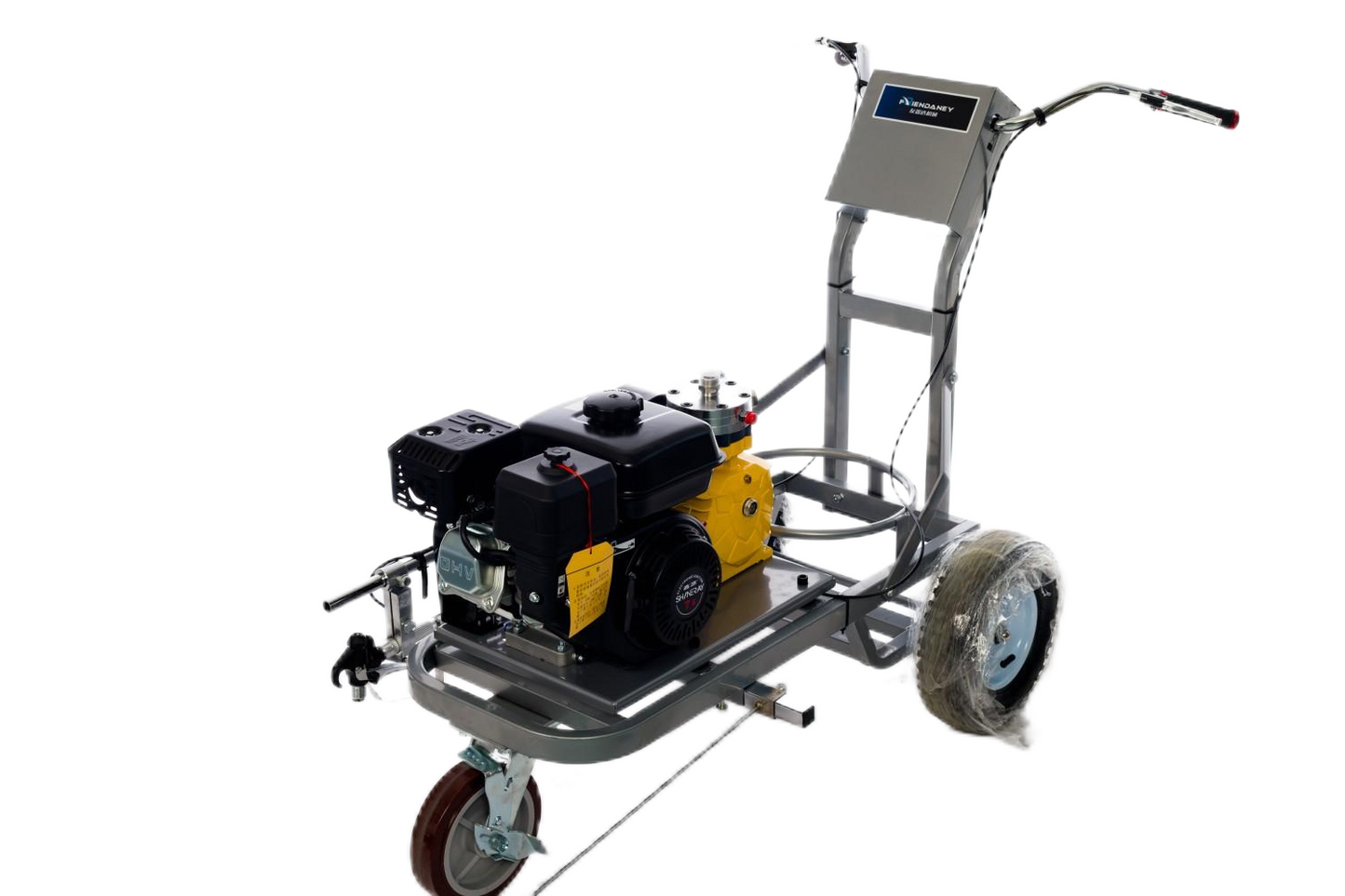

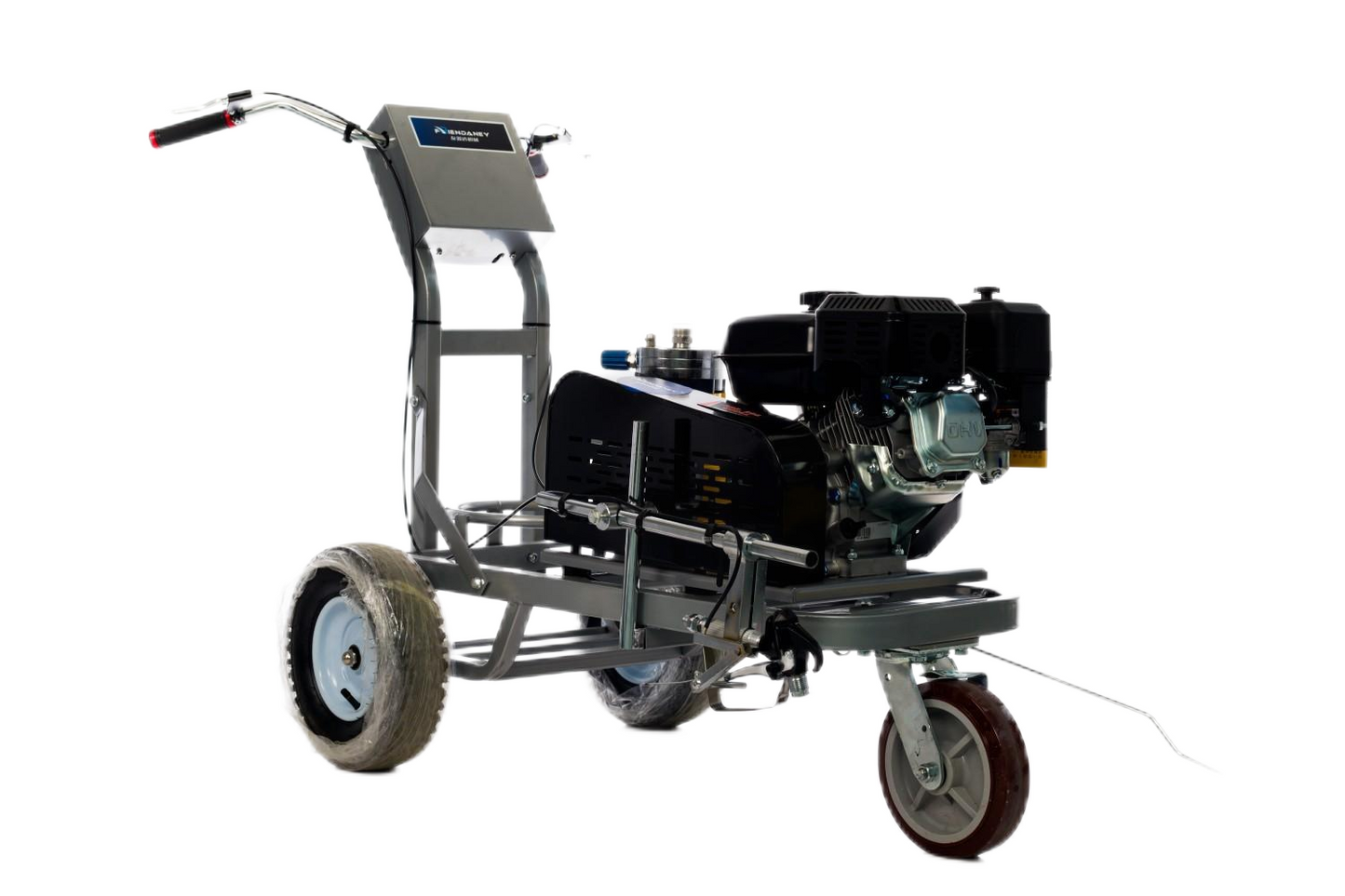

FDN-4800C Gasoline Engine Cold Spray Line Marking Machine

The FDN-4800C Gasoline Engine Cold Spray Line Marking Machine is designed for precise and efficient application of road markings. It is ideal for use in rural and urban areas, airports, highways, parking lots, and underground parking garages. This machine is capable of spraying water-based paint, cold paint, and other types of coatings, making it versatile for various marking projects.

Key Features:

• Versatile Application: Suitable for road markings in diverse environments, including rural and urban roads, airports, highways, parking lots, and underground garages.

• High-Pressure Performance: Operates at an output pressure of 22 MPa, ensuring consistent and clear markings.

• Efficient Pump System: Equipped with a cold spray line marking system that delivers a maximum flow rate of 4.0 liters per minute.

• Adjustable Pattern Width and Distance: Capable of producing pattern widths between 100–460 mm and pattern distances ranging from 400–550 mm.

• Durable Construction: Built with robust components, including a 5.5 HP gasoline engine, ensuring reliability and longevity.

Technical Specifications:

• Model: FDN-4800C

• Type: Cold spray line marking machine

• Engine Type: Gasoline supply motor

• Motor Power: 5.5 HP

• Output Pressure: 22 MPa

• High-Pressure Tube:

• Theoretical Length: 60 meters

• Standard Configuration: 13 meters

• Maximum Flow Rate: 4.0 liters per minute

• Application: Capable of spraying water-based paint, cold paint, and other coatings

• Net Weight/Gross Weight: 59 kg / 80 kg

• Pattern Width: 100–460 mm

• Pattern Distance: 400–550 mm

• Package Material: Plywood box

• Package Size: 108 x 68 x 86 cm

• Core Components: Gasoline motor

• Warranty of Motor:  6 Months
