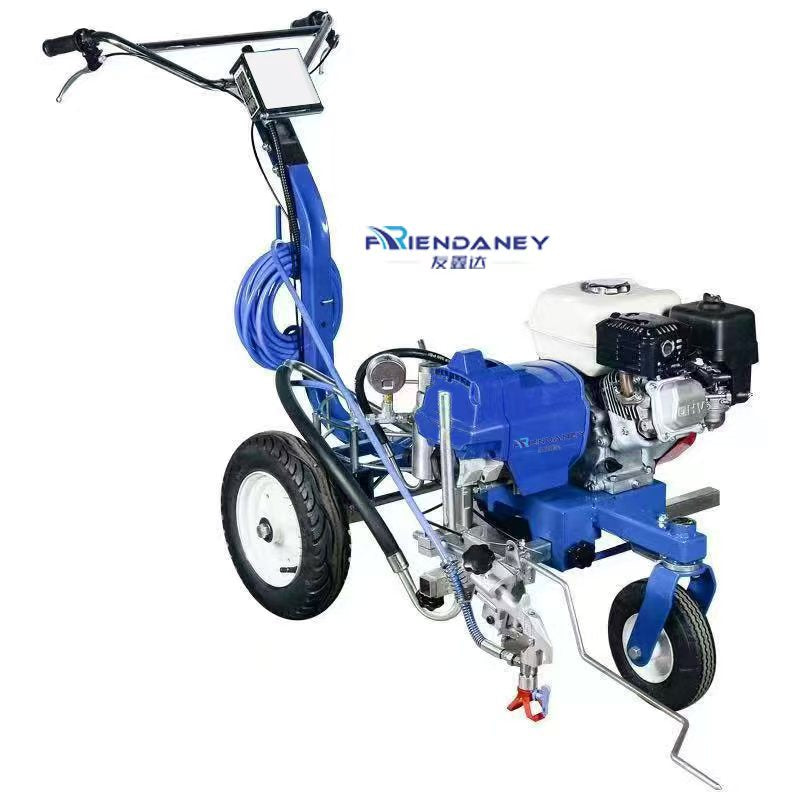

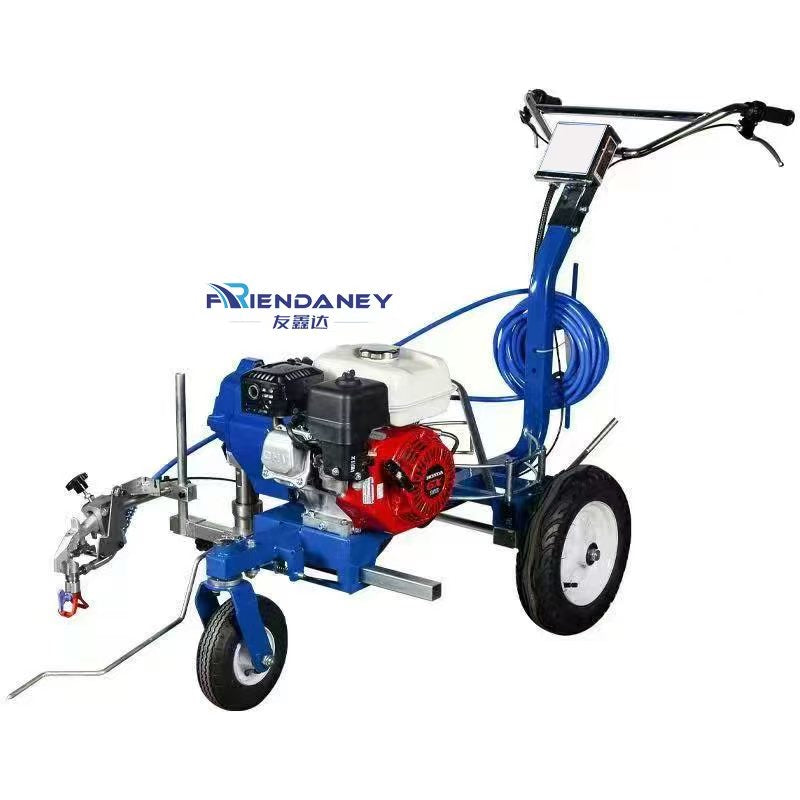

FDN-4800B Gasoline Engine Plunger Road Marking Machine

The FDN-4800B Gasoline Engine Plunger Road Marking Machine is engineered for precise and efficient application of road markings. It is ideal for use in rural and urban areas, airports, highways, parking lots, and underground parking garages. This machine is capable of spraying water-based paint, cold paint, and other types of coatings, making it versatile for various marking projects.

Key Features:

• Versatile Application: Suitable for road markings in diverse environments, including rural and urban roads, airports, highways, parking lots, and underground garages.

• High-Pressure Performance: Operates at a working pressure of 15 MPa, ensuring consistent and clear markings.

• Efficient Pump System: Equipped with a piston pump that delivers a maximum flow rate of 2.0 liters per minute.

• Adjustable Pattern Width and Distance: Capable of producing pattern widths between 250–300 mm and pattern distances ranging from 350–400 mm.

• Durable Construction: Built with robust components, including a 5.5 HP gasoline engine, ensuring reliability and longevity.

Technical Specifications:

• Model: FDN-4800B

• Type: Piston pump road marking machine

• Engine Type: Gasoline supply motor

• Motor Power: 5.5 HP

• Working Pressure: 15 MPa

• High-Pressure Tube:

• Theoretical Length: 60 meters

• Standard Configuration: 1/4 inch, 10 meters

• Maximum Flow Rate: 2.0 liters per minute

• Application: Capable of spraying water-based paint, cold paint, and other coatings

• Net Weight/Gross Weight: 65 kg / 75 kg

• Pattern Width: 250–300 mm

• Pattern Distance: 350–400 mm

• Package Material: Plywood box

• Package Size: 135 x 75 x 100 cm

• Core Components: Gasoline motor

• Warranty of Motor: 6 month
