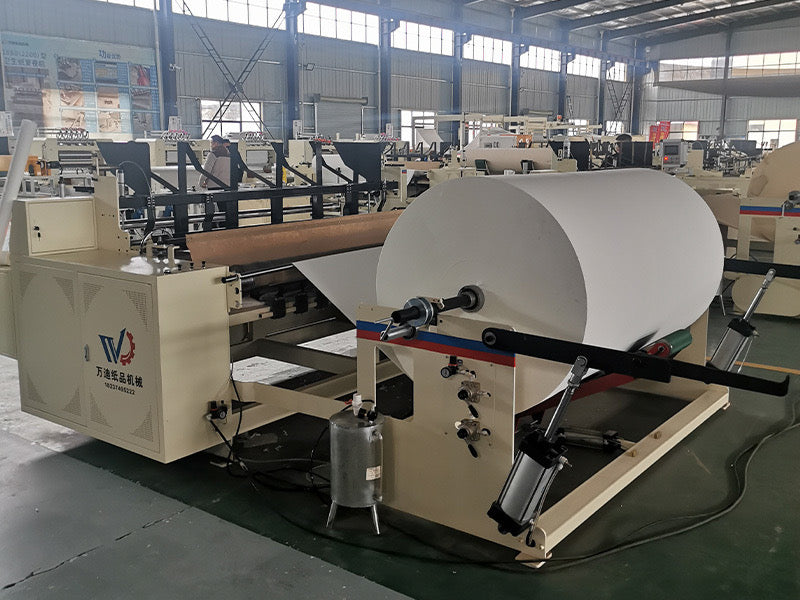

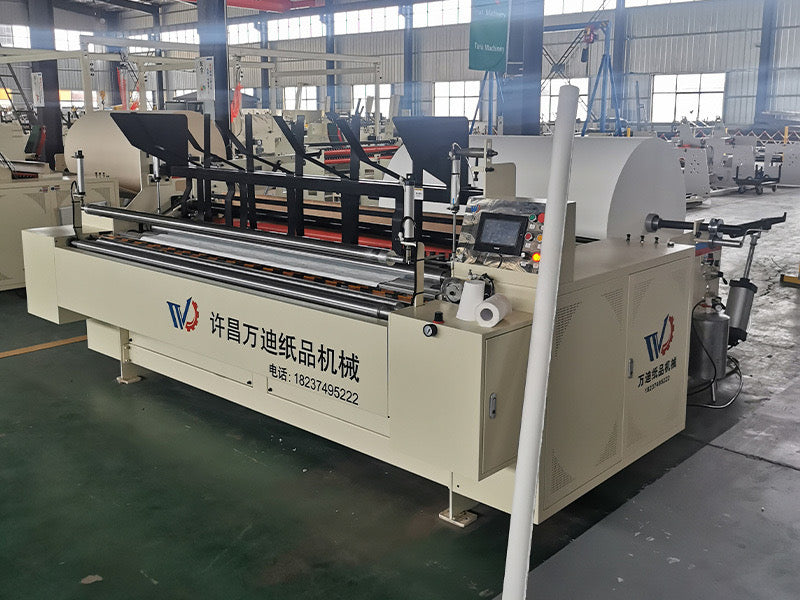

2200 Model Pure Steel Automatic Toilet Paper Rewinder

The 2200 toilet paper rewinder is a high-stability machine ideal for large-scale toilet paper production. Built with high-strength steel plate and laser-cut precision, it features automatic core pulling, feeding, trimming, punching, glue spraying, and rewinding. Controlled via PLC with a user-friendly interface, it runs at 220m/min and supports paper rolls up to 2200mm wide. Perfect for high-grade toilet paper manufacturing.

Key Specifications:

• Model: 2200

• Raw paper width: ≤2200mm

• Max base paper diameter: 1200mm

• Speed: 220m/min

• Power: 4kW

• Weight: 2.5T

• Size: 4500×3400×1800mm

• Control: PLC with HMI

• Core diameter: 76.2mm (input), 20–50mm (output)

• Functions: Automatic rewinding, trimming, punching, core pulling, glue spraying

Application:

Toilet paper production — industrial and commercial use.
